G-1811S Code 121

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72228

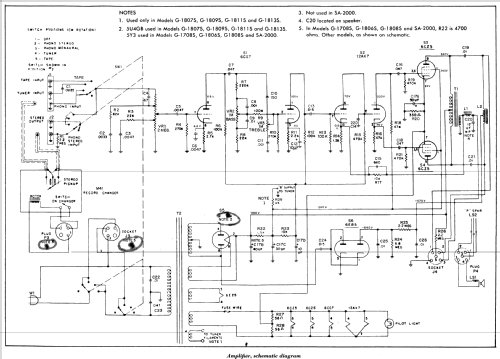

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 14
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 15 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: G-1811S Code 121 - Philco, Philadelphia Stg. Batt
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 40.25 x 33.625 x 18 inch / 1022 x 854 x 457 mm
  • Notes

  • The Philco Model G-1811S (Code 121) is an AC operated 8 Tube AM/FM Tuner with 6 tube Phono Amplifier and a 4 Speed Record Changer. Uses Tuner RT-202. Also uses Record Changer M-41 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. Has a stereo cartridge, with output jack for stereo conversion. This model has Qty(1) 12" PM woofer and Qty(2) type "P" electrostatic speakers. Cabinet is Mahogany or Walnut. Philco model G-1811S (Code 123) is similar except is modified for the addition of the RSB-10 Remote Stereo Balance Control and the 6CG7 tube is replaced by a 12AX7 tube.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 19, 1959
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Literature/Schematics (3)
  • Philco Folder AD-1793 for 1959.
