- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 212984
Picture from Philco datasheet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Power out
- 0.9 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: G-761 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 15 x 7 x 5 inch / 381 x 178 x 127 mm
- Notes
-

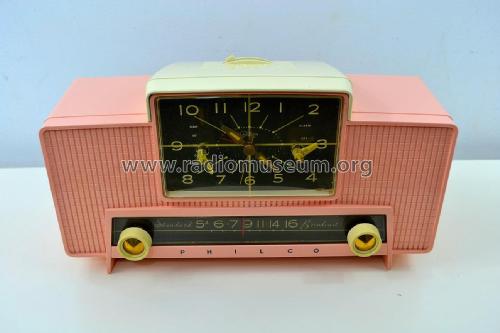

The Philco Model G-761 is an AC operated 6 Tube AM Receiver with Electric Clock. Cabinet color is Pink and Ivory or Mahogany. BC Band Tuning Range: 535 to 1620KHz. This model has Qty(2) 4" PM speakers. Has fully automatic Telechron (C-103) internal timer and clock, with Sleep switch, Buzzer Alarm and "Lullaway" slow shut-off features. Uses type 47 Dial Light.
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (3)
- Philco Folder AD-1792 for 1959.
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
