• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72211

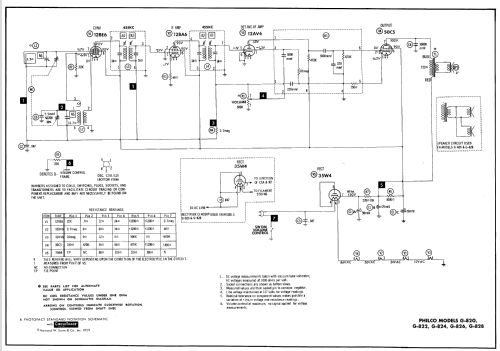

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: G-822 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.75 x 6.625 x 4.25 inch / 298 x 168 x 108 mm

• Notes

• The Philco Model G-822 is an AC/DC operated 5 Tube AM Receiver. BC Band Tuning Range: 540 to 1620KHz. Cabinet color is Lustre Ivory. This model has Qty(1) 4" PM speaker. Has high impedance loop antenna mounted on back of radio. In Lustre Ivory or Lemon Yellow.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)

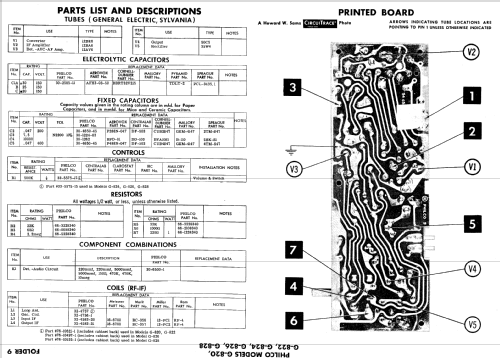

• Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 9)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Literature/Schematics (3)

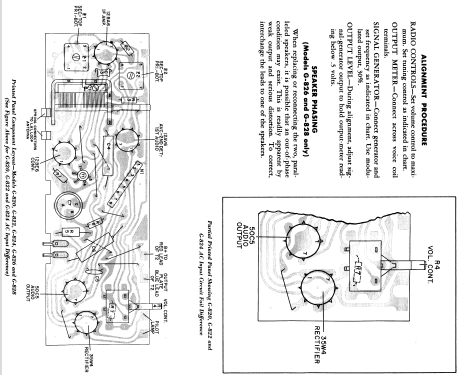

• Philco Folder AD-1792 for 1959.

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
