• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212983

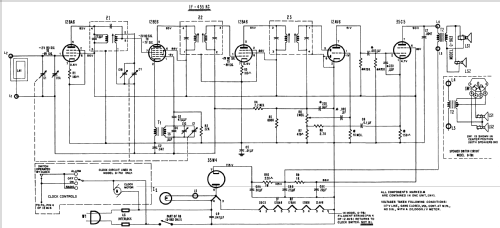

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: G-963 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 14.25 x 8.25 x 5 inch / 362 x 210 x 127 mm

• Notes

• The Philco Model G-963 is an AC/DC operated 6 Tube AM Receiver. Cabinet color is Lustre Ivory or Mahogany. BC Band Tuning Range: 535 to 1620KHz. This model has Qty(2) 4" PM speakers. Uses type 47 Dial Light.

• Source of data
• - - Manufacturers Literature

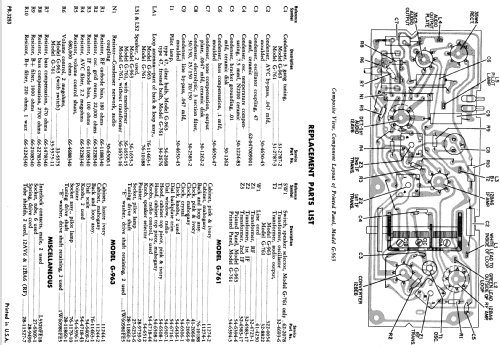

• Literature/Schematics (3)
• Philco Folder AD-1792 for 1959.

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
