- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72215
eBay seller gcoa.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: G-974 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.25 x 9.375 x 7.875 inch / 413 x 238 x 200 mm
- Notes
-

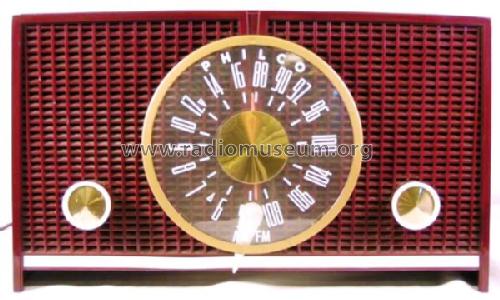

The Philco Model F-974 is an AC/DC operated 7 Tube and 1 Selenium Rectifier AM/FM Receiver. Cabinet is Ebony or Maroon. AM Band Tuning Range: 540 to 1620KHz. FM Band Tuning Range: 88 to 108MHz. This model has Qty(1) 5" PM speaker. Has high impedance pancake loop antenna for AM and uses the line cord for FM antenna with provision for connecting external antenna.
- Source of data
- Beitman Radio Diagrams, Vol. 19, 1959
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 19, 1959
- Literature/Schematics (2)
- - - Manufacturers Literature
- Literature/Schematics (3)
- Philco Folder AD-1792 for 1959.
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
