H4668L Ch= 10L31

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1958
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 143430

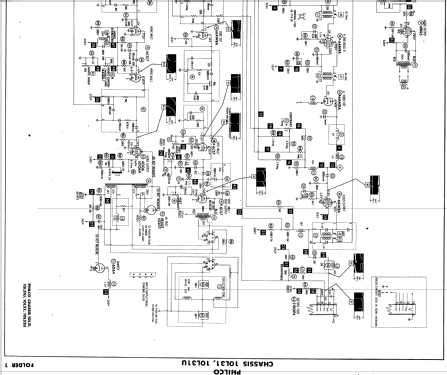

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: H4668L Ch= 10L31 - Philco, Philadelphia Stg. Batt
  • Notes

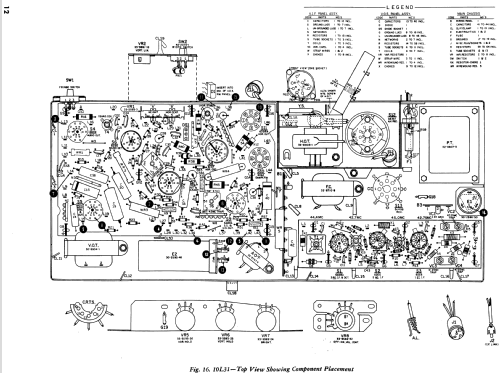

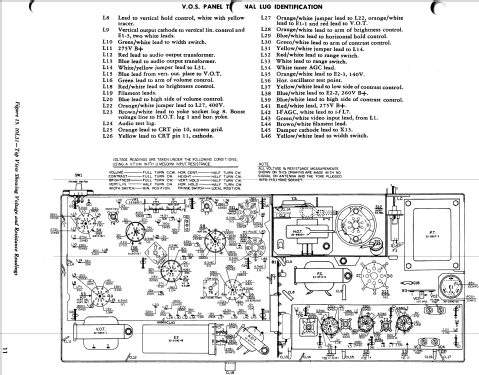

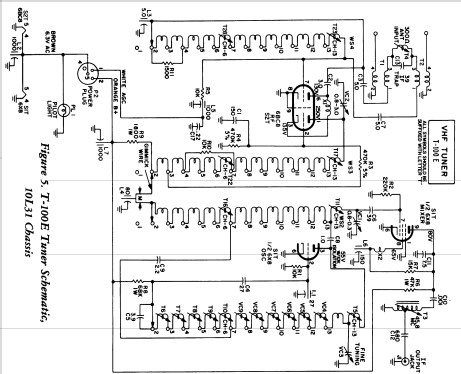

  • The Philco H4668L is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 10L31, VHF tuner T-100A and picture tube 21DQP4. Sams photofact set 479 folder 1 date 3-60 features the Philco models H4248E, H4250, H4250E, H5250L, H4253, H4253L, H4668, H4668L, H4670, H4670L, H4670W, H4672, H4672L, H4672W with chassis 10L31 and the models UH4248E, UH4250, UH4250E, UH4250L, UH4253, UH4253L, UH4668, UH4668L, UH3570, UH4670L, UH4670W; UH4672, UH4672L, UH4672W with chassis 10L31U and the models H4668LR, H4668R, H4673LR, 4673R with chassis 10L32 and the models UH4668LR, UH46668R, UH4673LR, UH4673R with chassis 10L32U as the same schematic.
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
