- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78455
Philco H-759 Front View
Picture from Philco datasheet

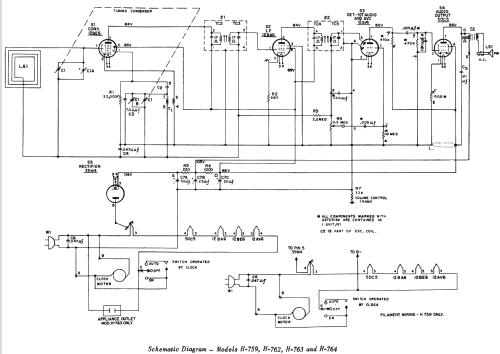

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.9 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: H-759 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
- The Philco Model H-759 is an AC operated 5 Tube AM Receiver with Electric Clock. Cabinet is Lustre Ivory. BC Band Tuning Range: 540 to 1620KHz. This model has Qty(1) 4" PM speaker. Uses Telechron J2 internal timer and clock.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Mentioned in
- Beitman Radio Diagrams, Vol. 20, 1960
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
