- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134667
Picture from Philco datasheet

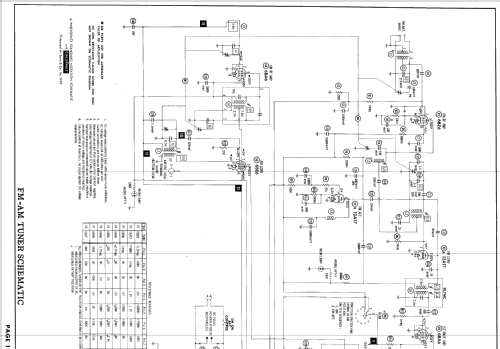

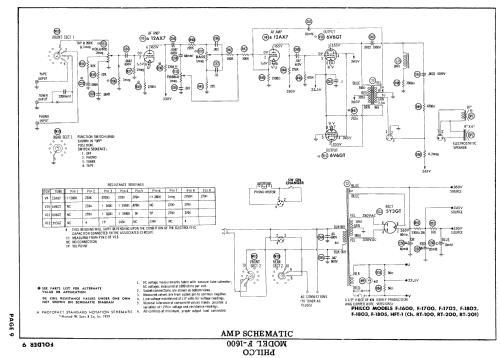

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: HFT-1 - Philco, Philadelphia Stg. Batt
- Shape
- Book-shelf unit.
- Notes
- The Philco model HFT-1 is a AC operated self-contained 9 tube and 1 selenium rectifier AM/FM tuner to be used in conjunction with a high-fidelity amplifier. This model is similar to Philco "built-in" tuners RT200, RT200-1 and RT201, which are used in the "F" line Philco High-Fidelity Radio-Phonographs. AM Band Tuning range: 540-1620KHz. FM Band Tuning range:88-108MHz. Has built in AM antenna and uses line cord for FM antenna with provisions for connecting an external antenna. Cabinet is Blonde, Fruitwood or Mahogany.
- Mentioned in
- Philco Home Radio Yearbook 1958
- Literature/Schematics (1)

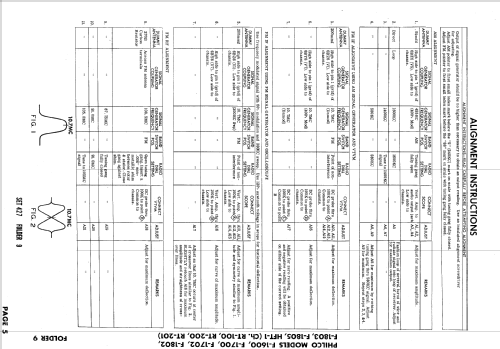

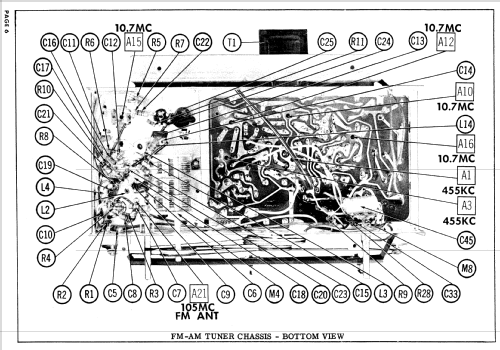

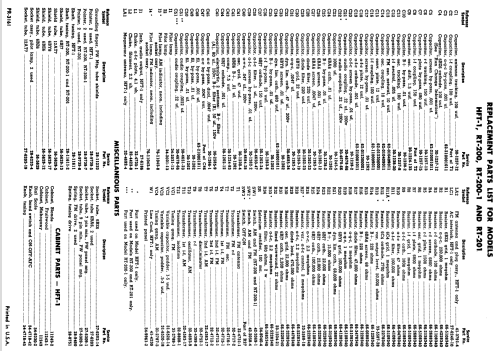

- Photofact Folder, Howard W. SAMS (Date 1-59, Set 427, Folder 9)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
