• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1961 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 88137

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25L6GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: K-1414 - Philco, Philadelphia Stg. Batt

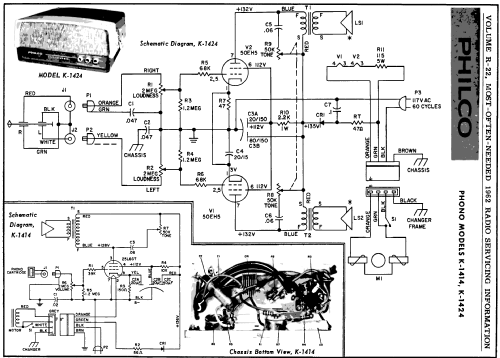

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 22, 1962

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
