• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88133

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: K-853 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

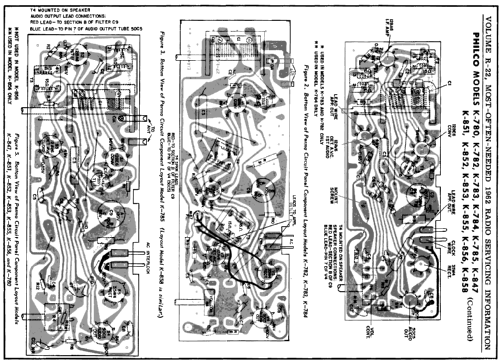

• Sams photofact, set 604, folder 10, date 11-62, features the Philco models K-847, K-851, K-852 and K-853 as the same schematic.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 22, 1962

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 604 folder 10 date 11-62)
