L-926

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 90030

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: L-926 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • The Philco L-926 is an AC operated 6 tube AM/FM clock radio.  Has built-in loop antenna for AM and uses line cord as FM antenna with provisions for connecting an external FM antenna. Cabinet back was available in blue and brown.

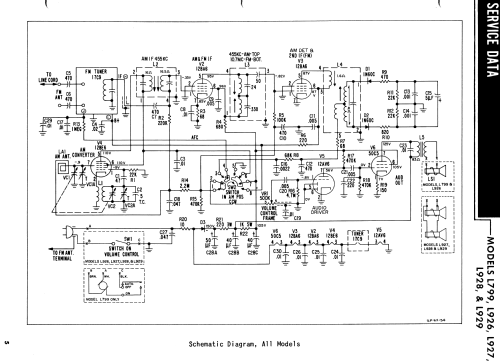

    Sams photofact, set 647, folder 10, date 8-63, features the Philco models L-799, L-926, L-927, L-928 and L-929 as the same schematic. Only model L-799 with electric clock.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 23, 1963
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Philco Home Radio Service Data PR-3743 Dated 1962)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
