70 Lazyboy

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18811

• Picture

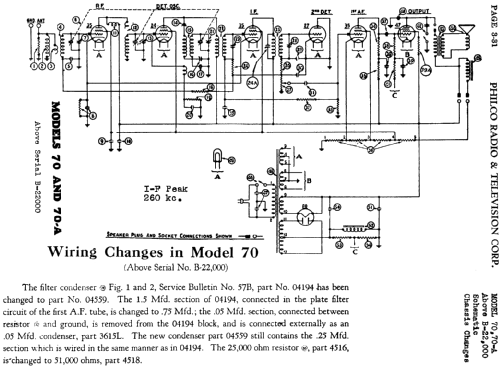

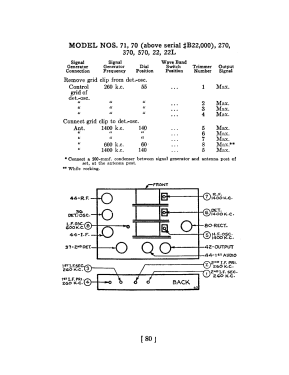

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 224 224 224 227 227 unknown_Tube 280

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 70 Lazyboy - Philco, Philadelphia Stg. Batt

• Shape

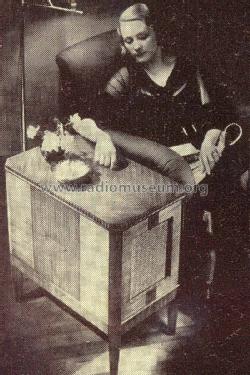

• Console: Chairside Radio.

• Dimensions (WHD)
• 16.5 x 18 x 10 inch / 419 x 457 x 254 mm

• Notes

• The correct model number is probably 370 Lazyboy. The 370 Lazyboy is a model 70 chassis in a chairside cabinet. [373146] In the Folder is the price $ 69.50.

• Price in first year of sale
• 800.00 SFR

• External source of data
• E. Erb 3-907007-36-0

• Literature/Schematics (3)
• Philco Folder 2674.
