- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philco Radio & Television Corp. of Great Britain Ltd.; London
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102488
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Lowboy 55E - Philco Radio & Television Corp
- Shape
- Console with any shape - in general
- Notes
- Possibly imported from USA? See similar model there.
- Mentioned in
- -- Original-techn. papers. (Trader 717)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
- Other Models
-
Here you find 256 models, 157 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco Radio & Television Corp. of Great Britain Ltd.; London
Forum contributions about this model: Philco Radio &: Lowboy 55E
Threads: 1 | Posts: 10
Following on from my success in getting help on a Pye radio, I have dug out an old Philco 55E radio which I picked up a few years ago in a terrible state.
Interestingly, I logged it in my collection under Philco GB as a 55E only because this was already in the Museum. However I notice that there are Geradeaus Var 1 and Var 2 logged under Philco USA. The radio is made by Philco USA and I think the variants would be a 55A for the USA market and a 55E for the European. Difference probably is the mains transformers primary.. either 115V or 240V.
I am starting to restore this set but would like to log it correctly so I would propose that the Var 1 and Var 2 names are changed and that the Philco GB entry is removed.
Any suggestions on this and am I correct in what I think.
Mark
Attachments

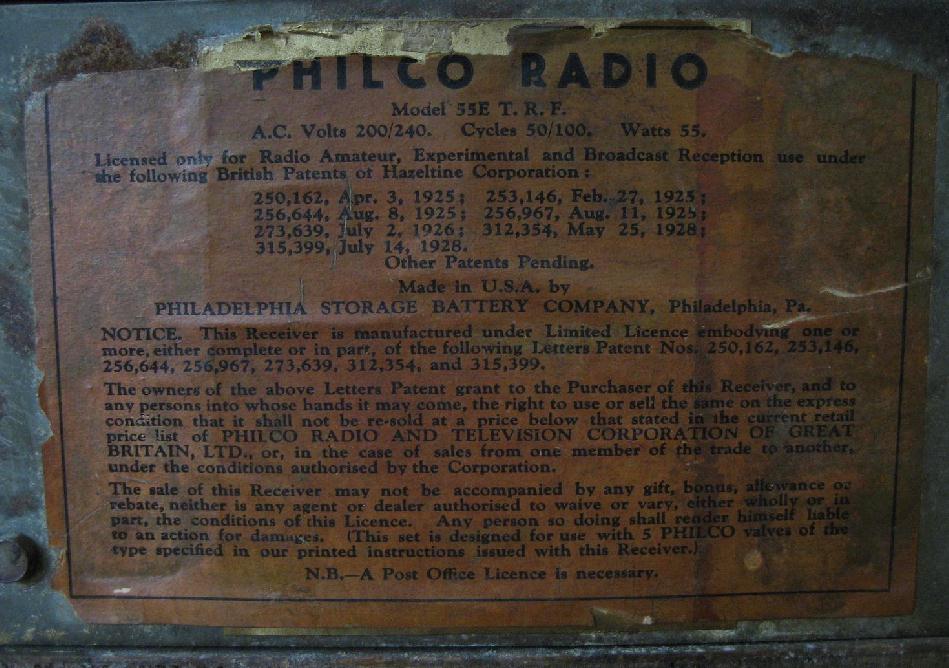

- Rear Label 55E Web (113 KB)
Mark Andrews, 17.Sep.07
