• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1951 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 51416

Click on the schematic thumbnail to request the schematic as a free document.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Bakelite case

• from Radiomuseum.org

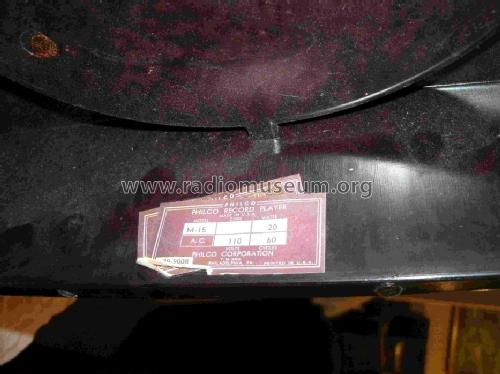

• Model: M-15 Record Player - Philco, Philadelphia Stg. Batt

• Dimensions (WHD)
• 14 x 5.75 x 13.5 inch / 356 x 146 x 343 mm

• Notes
• Important Hazard Note: This unit is equiped with mercury switches.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before
