Manhattan
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 132790
on inner rear cover
www.leboncoin.fr/collection/2040931156.htm
www.leboncoin.fr/collection/2040931156.htm
www.leboncoin.fr/collection/2040931156.htm

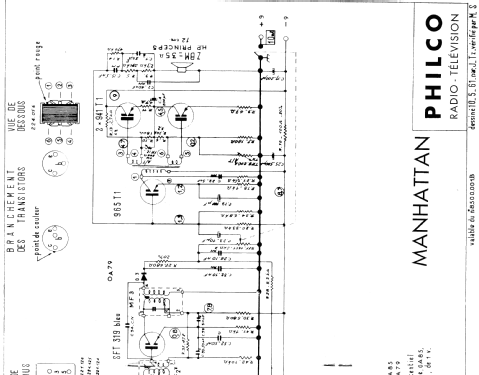

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- from Radiomuseum.org
- Model: Manhattan - Philco, Philadelphia Stg. Batt
- Notes
-
Manhattan Philco est un récepteur à 6 transistors et 2 diodes au germanium.
Fabriqué en France sous licence de Philco Corporation.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Jacky Parmentier. See "Data change" for further contributors.
