• Country
• Brazil

• Manufacturer / Brand
• Philco Rádio e Televisão; São Paulo

• Year
• 2009 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273407

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 8x D 1,5 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

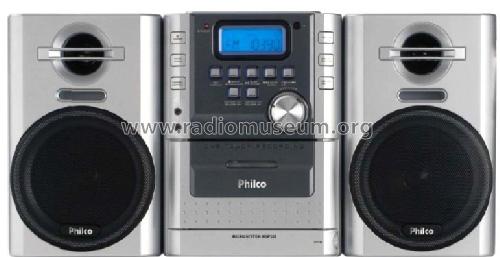

• Model: Micro system MSP-201 - Philco Rádio e Televisão; São

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 230 x 270 mm / 17.3 x 9.1 x 10.6 inch

• Notes
•
  MW FM radio PLL tuning, CD player and tape deck rec-play

  2 channel stereo, LCD display with backlight.
  Auxiliary input, phone out, 6 presets audio equalizations.
  The set is supplied with 2 loudspeaker box.
  Speakers boxes can be coupled to the set for portable use.
  Dimensions and weight refers to the central unity with coupled speakers

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Literature/Schematics (1)
• Philco commercial leaflet

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
