• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1957 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 271482

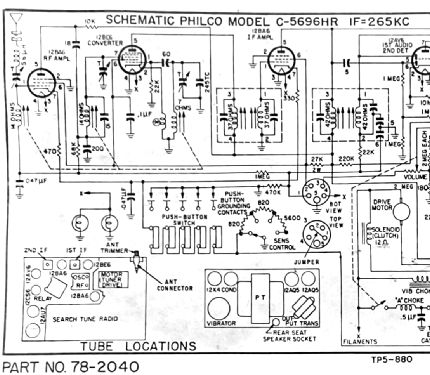

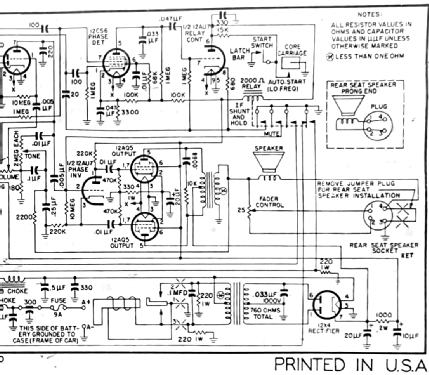

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 12CS6 12AU7 12AQ5 12AQ5 12X4

• Main principle
• Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 7 inch = 17.8 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Mopar 912HR Ch= C-5696HR - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Notes

• The Philco Mopar 912HR is a battery operated 9 tube BC band car radio.  The BC band frequency range is 540-1605kHz.  Has Qty(2) PM 7" speakers (Front and back of car).

• Mentioned in

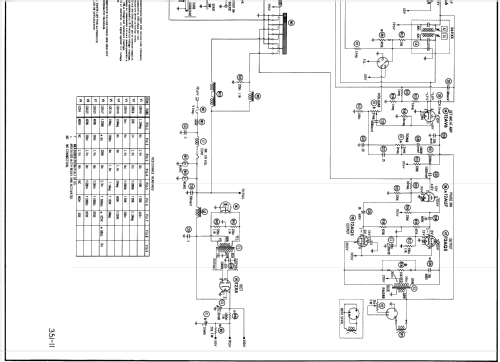

• Photofact Folder, Howard W. SAMS (Set 351, Folder11, Date 3-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
