• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93062

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superhet with RF-stage; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / C: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

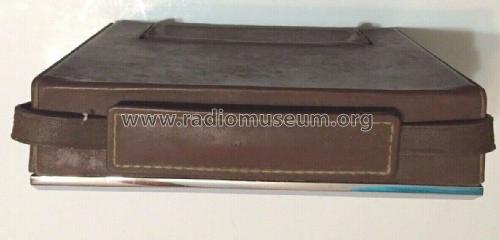

• Model: NT-808 NT-808BR - Philco, Philadelphia Stg. Batt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8.25 x 7 x 0 inch / 210 x 178 x 0 mm

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 25, 1965

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
