• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1937 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 51452

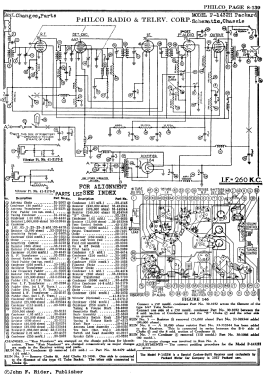

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 6A7 78 75 41 84

• Main principle
• Superhet with RF-stage; ZF/IF 260 kHz

• from Radiomuseum.org
• Model: P-1432 Packard - Philco, Philadelphia Stg. Batt

• Notes
• Model is equipped with vibrator for generation of B+.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before
