• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philco Radio & Television Corp. of Great Britain Ltd.; London

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78624

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78E 85 42E 80

• Main principle
• Superheterodyne (common); ZF/IF 451 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200 - 230; 231 - 260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

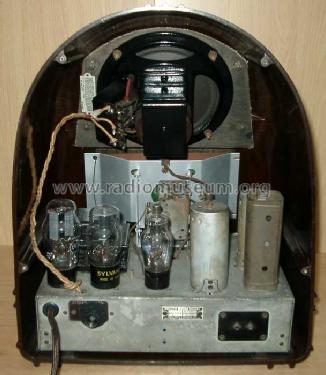

• Model: The People´s Set De Luxe A-527 - Philco Radio & Television Corp

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 12.5 x 16 x 9.5 inch / 318 x 406 x 241 mm

• Notes
• similar cabinet for U427, A527, U527, P527, B537 and V537.

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• -- Original-techn. papers. (Paul Stenning's CD)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
