111A Lowboy
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 51475
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 111A Lowboy - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Models 111 and 111A were Philco's first superheterodyne radios and were available in a lowboy or a highboy cabinet. Model 111 is for 50-60 Hz and model 111A is for 25-60 Hz.
- External source of data
- Ernst Erb
- Circuit diagram reference

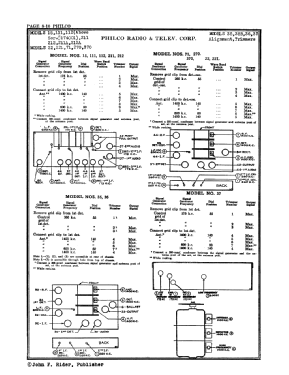

- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)

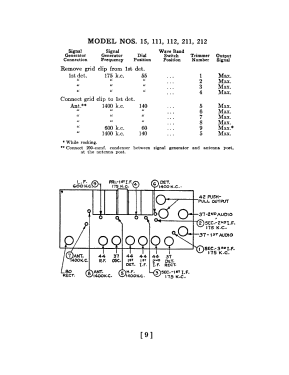

- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
