• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350253

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1232 7J7 7B7 7C6 7B5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Philco 142 - Dominion Radio & Electrical

• Shape
• Console with any shape - in general

• Notes

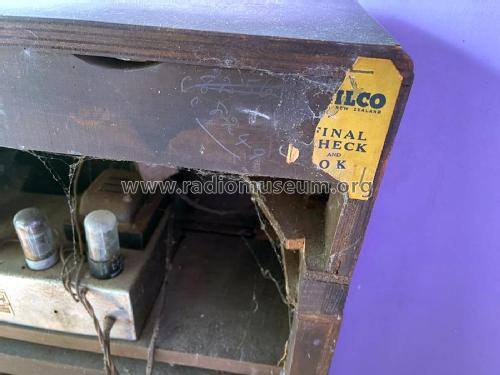

• 6-valve superhet with RF stage. Console model with gramophone connections and Chrome chassis.

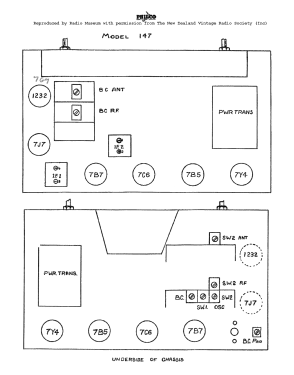

  Appears to be the same chassis as used in Model 147 mantel radio.

  Made in New Zealand.

• Mentioned in
• -- Original prospect or advert (New Zealand Herald 8 February 1941 Page 11)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
