Philco 145

Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 356065

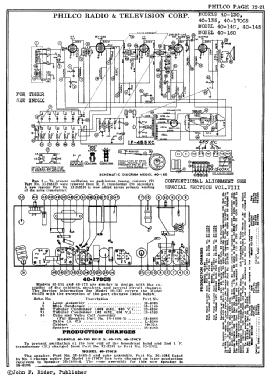

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Philco 145 - Dominion Radio & Electrical
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • PHILCO 6-VALVE ALL-WAVE MODEL 145

    Plug in and play, no aerial or earth required...Exclusive PHILCO 1232 Television Tube...Loop Aerial...New purity of tone...Super Power...New Loktal Tubes...Newly-developed self-contained...Automatic Volume Control...12 Months Guarantee on Set and Valves...Easy-to-read horizontal dial...Push Button Tuning. Reduced from 29 Guineas to 22 GUINEAS.

    Made in New Zealand. See also US models 40-145T Early and 40-145T Late which appear to use the same chassis.

  • Price in first year of sale
  • 29.00 NZ Guineas
  • Mentioned in
  • -- Original prospect or advert (New Zealand Herald 27 March 1941 Page 4)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Evening Star 4 April 1940 Page 5)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
