• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350291

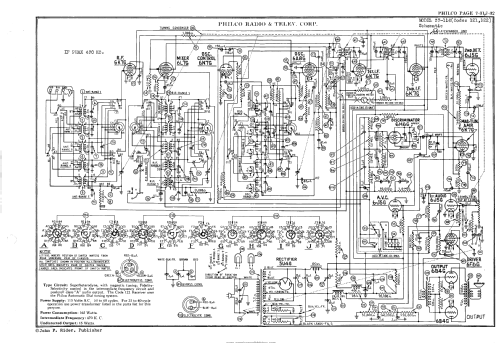

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6K7G 6L7G 6N7G 6A8G 6K7G 6H6G 6K7G 6J5G 6K7G 6J5G 6J5G 6F6G 6B4G 6B4G 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Philco 37-116X Code 122 - Dominion Radio & Electrical

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 26.5 x 43 x 14.5 inch / 673 x 1092 x 368 mm

• Notes

• Model 37-116X De Luxe has automatic tuning in addition to the other features of model 37-116X, which include "Magnetic Tuning" (automatic frequency control to automatically centre tuning and eliminate drift), variable IF bandwidth to trade off selectivity vs fidelity, and three "Acoustic Clarifiers" (passive radiators to reduce cabinet resonance. The De Luxe version uses a code 122 chassis (no shadow meter).

  Made in the USA

  See also US Model 37-116X De Luxe.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
