• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346186

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF89 6AT6 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

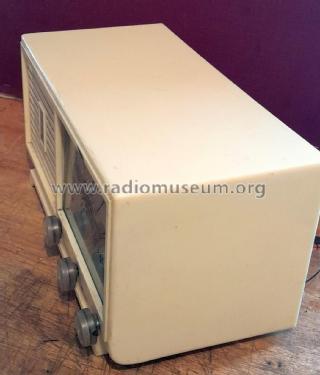

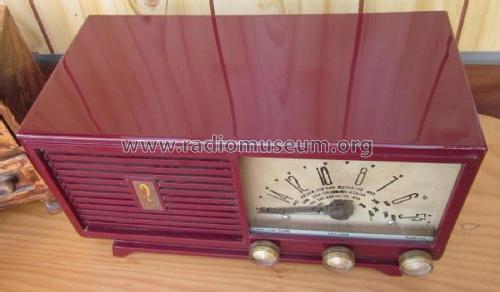

• Model: Philco Georgia - Dominion Radio & Electrical

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 157 x 160 mm / 12.2 x 6.2 x 6.3 inch

• Notes

• 5 valve broadcast (MW) superhet mantel receiver available in a range of colours.

  Rola 5C PM speaker.

  See also Philco Georgia dual wave.

• Price in first year of sale
• 16.80 NZ £

• Mentioned in
• More Golden Age of Radio (Page 108)

• Literature/Schematics (1)
• -- Original prospect or advert (Press 14 May 1959 Page 5)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
