• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351957

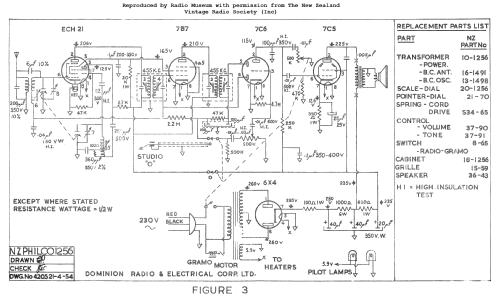

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 7B7 7C6 7C5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Philco M1256 - Dominion Radio & Electrical

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Philco M1256 Mantel Radiogram

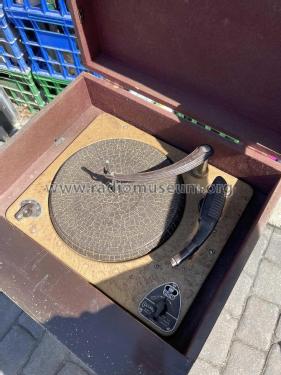

  5-valve broadcast (MW) mantel radiogram with Collaro 3RC-531 3-speed record changer with turnover crystal pick-up head.

  Manufactured for Chas Begg & Co. Ltd by Dominion Radio and Electrical Corporation Ltd in 1954.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
