Predicta Penthouse Tandem UG4710M Ch= 9L38U
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 126890

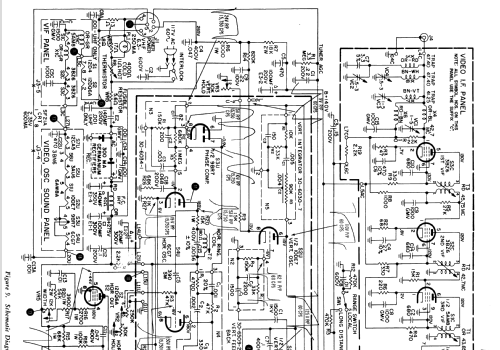

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 5X8 4BC8 2AF4A 3BZ6 3CB6 5AM8 3AU6 3BN6 5AQ5 6AW8A 9BR7 10DE7 6CG7 12DQ6A 1G3GT 12D4 21EAP4 or SF21A
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Predicta Penthouse Tandem UG4710M Ch= 9L38U - Philco, Philadelphia Stg. Batt
- Shape
- Miscellaneous shapes - described under notes.
- Notes
- 21" (53 cm) b/w TV with US standard VHF-/UHF tuner, Range Switch, built-in telescopic antenna, mahogany wood cabinet, separate slim SF Philco CRT in safety case with 25 feet (7.6 m) cable allows remote use of the screen, advert text for this kind of models: "Keep the set beside your chair - put the picture anywhere".
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 441, Folder 2, May 1959.)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
