• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51483

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

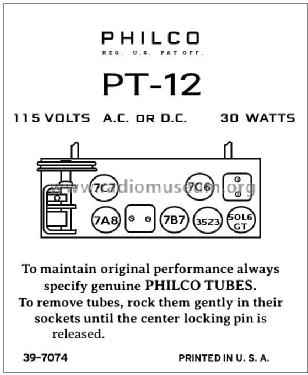

• 7C7 7A8 7B7 7C6 50L6GT 35Z3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: PT-12 Transitone - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 8 x 6.88 inch / 305 x 203 x 175 mm

• Notes
• Built-in Loop Aerial

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Philco Radio 1928-1942, Ramirez)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 04, 1941 (Philco 1941 RMS Year Book)

• Other Models

• Here you find 4019 models, 2215 with images and 3667 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
