• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78451

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 6BA6 6BA6 6BE6 6AU6 6BJ7 6X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

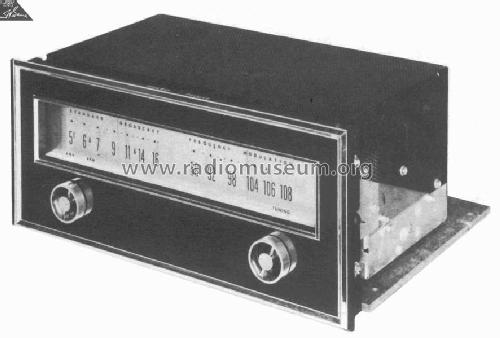

• Model: RT-300 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, low profile (big size).

• Notes
• AM/FM Tuner

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Mentioned in
• Beitman Radio Diagrams, Vol. 20, 1960

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 510 folder 15 date 12-60)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
