• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958/1959

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 72222

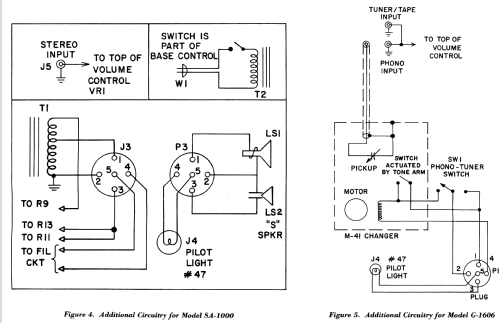

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AU6 6AQ5 6AQ5 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA-1000 - Philco, Philadelphia Stg. Batt

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• The Philco Model SA-1000 is an AC operated 4 Tube Phono Amplifier. This model has Qty(1) 6" PM woofer and Qty(1) type "S" electrostatic speaker. Cabinet is Blonde or Mahogany. Is designed to be the additional amplifier/speakers needed to complete stereo operation for Philco model G-1606S.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)

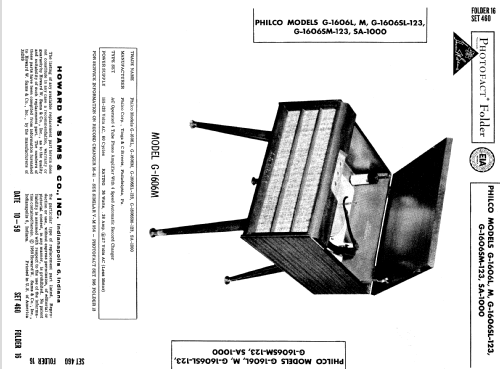

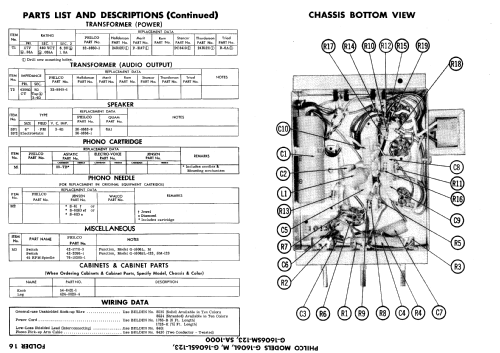

• Photofact Folder, Howard W. SAMS (Date 10-59, Set 460, Folder 16)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Literature/Schematics (3)
• Philco Folder AD-1793 for 1959.

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
