- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1960
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 78744
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org

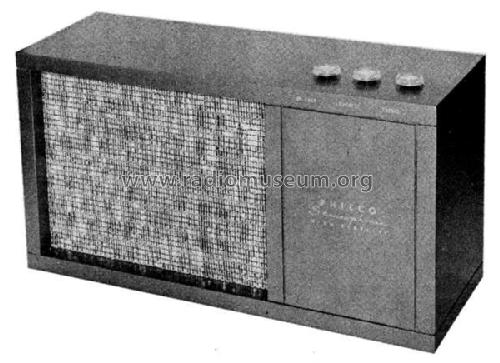

- Model: SA-1005 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.
- Notes
- single-channel amplifier primarily designed as a companion for the G-Line HiFi Stereo Phonographs.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-61, Set 522, Folder 9)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
