SA-2000 Code 121

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1958/1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 72230

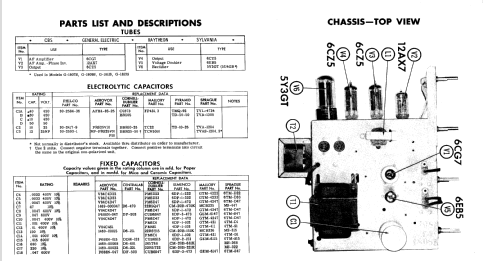

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 15 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SA-2000 Code 121 - Philco, Philadelphia Stg. Batt
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • The Philco Model SA-2000 (Code 121) is an AC operated 6 Tube Phono Amplifier and a 4 Speed Record Changer. Uses Record Changer M-41 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. Also has a stereo cartridge, with output jack for stereo conversion. This model has Qty(1) 12" PM woofer and Qty(1) type "P" electrostatic speaker. Philco model SA-2000 (Code 123) is similar except is modified for the addition of the RSB-10 Remote Stereo Balance Control and the 6CG7 tube is replaced by a 7025 tube.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 19, 1959
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Literature/Schematics (3)
  • Philco Folder AD-1793 for 1959.
