UF3044A Seventeener II Ch= 8H25U

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 134154

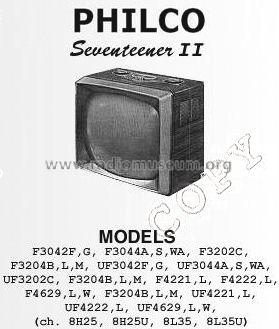

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 5X8 2CY5 12AX4GTA 12DQ6A 1G3GT 5AM8 3BZ6 3BZ6 6AW8A 10DE7 6CG7 3AU6 3BN6 12CA5 17BWP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: UF3044A Seventeener II Ch= 8H25U - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Philco UF3044A, Seventeener II, is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 8H25U and tuner T-69F.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 8-58, Set 409, Folder 3)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 387 Folder 15-S dated 2-58)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 4016 models, 2211 with images and 3664 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
