• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96240

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 120 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

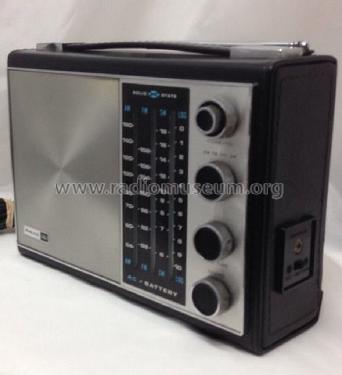

• Model: Solid State AC - Battery ST-988BK - Philco, Philadelphia Stg. Batt

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Philco AC/DC operated 3Band Portable Radio Model ST-988BK.
  Tuning Range: AM 540 - 1600 kHz, FM 88 -108 MHz, SW 6 - 18 MHz
  Earphone Jack, Telescopic antenna, Carrying Handle
  Power Consumption 15 Watts.

  Made in Japan 403
