• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85731

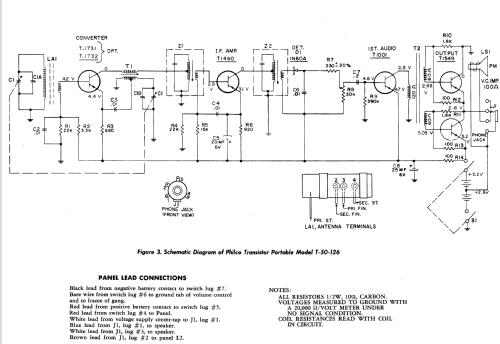

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1.3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.035 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T-50-126 - Philco, Philadelphia Stg. Batt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• The Philco T-50-126 is a battery operated portable 5 transistor AM receiver.  The AM band frequency tuning range is 535 to 1620 kHz.  Has push-pull output stage and earphone jack that disconnects the speaker for private listening.  Cabinet back is ivory, with cabinet front available in either aqua or terra cotta.

  Sams photofact features the Philco models T-50-126 and T-51-124 as the same schematic.

• Mentioned in
• Beitman Radio Diagrams, Vol. 21, 1961 (Page 114)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 519, folder 11 dated 2-61)

• Literature/Schematics (2)
• - - Manufacturers Literature (Philco Home Radio Service Data PR-3499 Dated 1959)
