T-60 Code 124

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72198

• Picture
• Schematics

Previous Next

Previous Next

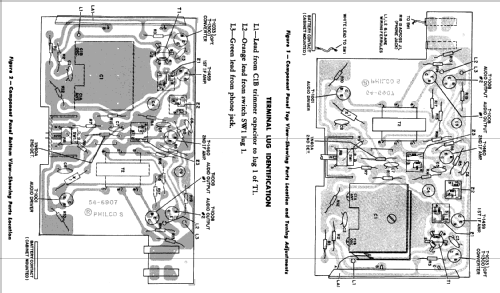

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• T-1033 T-1459 T-1460 T-1001 T-1008 T-1008

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T-60 Code 124 - Philco, Philadelphia Stg. Batt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• The Philco Model T-60 is a Battery operated 6 transistor portable AM Receiver. BC Band Tuning Range: 535 to 1620KHz. This model has Qty(1) 2.75" PM speaker. Earphone jack disconnects the speaker for private listening. Uses Qty(2) 1.5V AA cells. Cabinet is Black or Ivory and Gray. Optional Leather carrying case.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-59, Set 467, Folder 13)

• Literature/Schematics (2)
• - - Manufacturers Literature (Philco Portable Radio Service Manual PR-3310 Dated 1958)
