Transistor Six T-61 Code 124

Philco, Philadelphia Stg. Batt. Co.; USA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Philco, Philadelphia Stg. Batt. Co.; USA

Year
1961 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
88082

Schematics

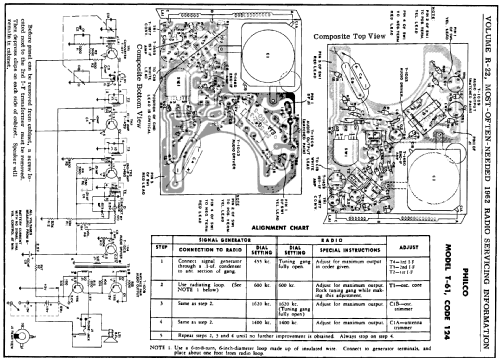

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 2028615) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (3)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 160977) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (3)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 2028305) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (3)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 2028306) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (3)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 2028307) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (3)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579158) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579164) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579159) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579163) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579160) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579165) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 579166) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (1)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 1425726) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (2)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 1425727) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (2)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 1451560) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (2)

Transistor Six T-61 Code 124; Philco, Philadelphia (ID = 1451561) Radio — Philco, Philadelphia Transistor Six T-61 Code 124 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
T-1877 T-1459 T-1460 T-1003 T-1009 T-1009

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 2 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Transistor Six T-61 Code 124 - Philco, Philadelphia Stg. Batt

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
63 x 112 x 30 mm / 2.5 x 4.4 x 1.2 inch

Notes
mit Ledertasche

(optional leather carrying case)

Net weight (2.2 lb = 1 kg)
0.2 kg / 0 lb 7 oz (0.441 lb)

Circuit diagram reference
Beitman Radio Diagrams Vol. 22, 1962

Mentioned in
Bunis, Transistor Radios, 2nd ed., 1996, p. 203

Literature/Schematics (1)
Philco Service Manual, 1961

Author
Model page created by Egon Penker. See "Data change" for further contributors.
