• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108116

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• T1033 T1233 T1232 T1033 T1001 T-1007 T-1007

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Scantenna T-701 Code 124 - Philco, Philadelphia Stg. Batt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 6.25 x 3.25 inch / 254 x 159 x 83 mm

• Notes

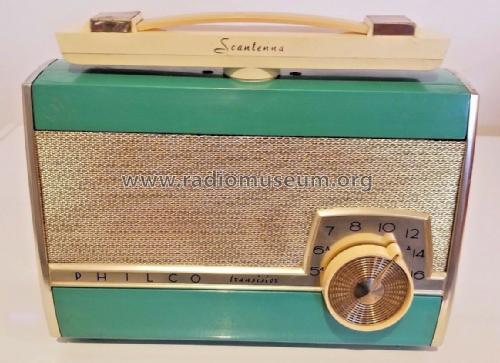

• The Philco Model T-701 (Code 124) is a Battery operated 7 transistor portable AM Receiver. BC Band Tuning Range: 535 to 1620KHz. This model has Qty(1) 4" PM speaker. Uses Qty(4) 1.5V D cells. Cabinet is Ebony or Turquoise and Ivory.
