T-75 Code 124

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72200

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• T-1033 T-1233 T-1232 T-1033 T-1001 T-1008 T-1008

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: T-75 Code 124 - Philco, Philadelphia Stg. Batt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 184 x 135 x 62 mm / 7.2 x 5.3 x 2.4 inch

• Notes

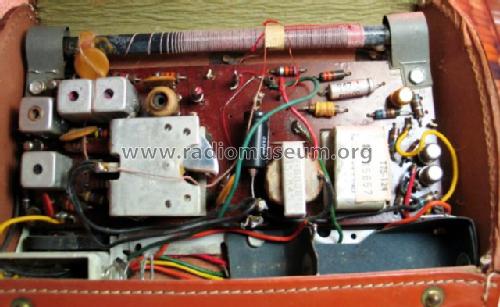

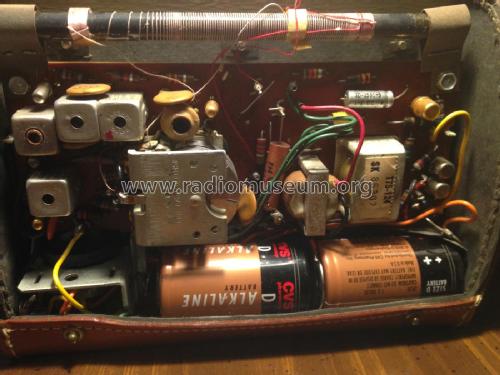

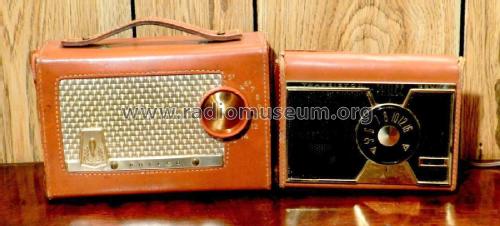

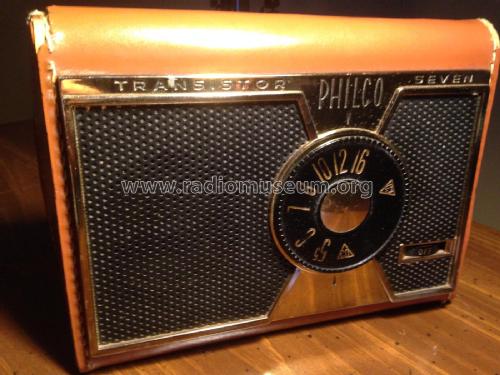

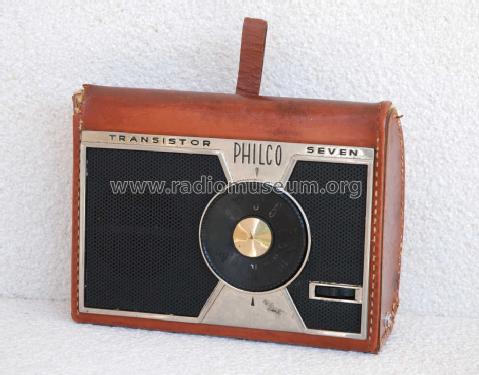

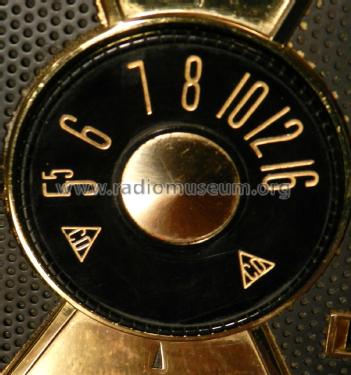

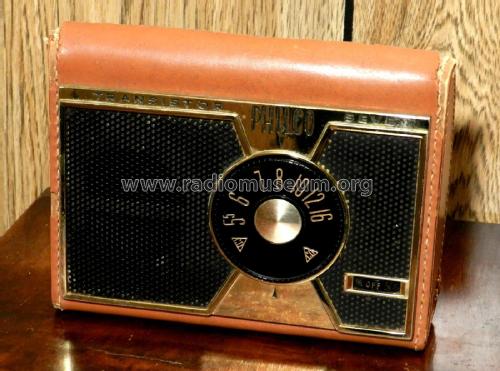

• The Philco Model T-75 is a Battery operated 7 transistor portable AM Receiver. BC Band Tuning Range: 535 to 1620KHz. This model has Qty(1) 2.75" PM speaker. Earphone jack disconnects the speaker for private listening. Uses Qty(2) 1.5V D cells. Leather covered cabinet.

• Net weight (2.2 lb = 1 kg)
• 0.860 kg / 1 lb 14.3 oz (1.894 lb)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)

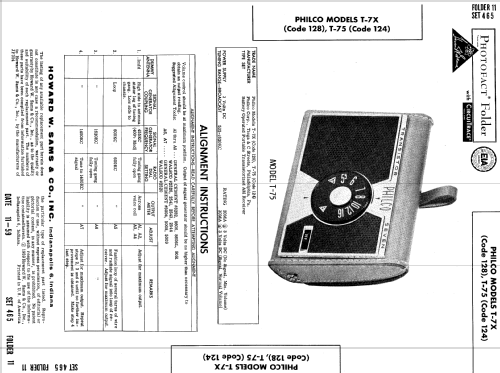

• Photofact Folder, Howard W. SAMS (Date 11-59, Set 465, Folder 11)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
