• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85739

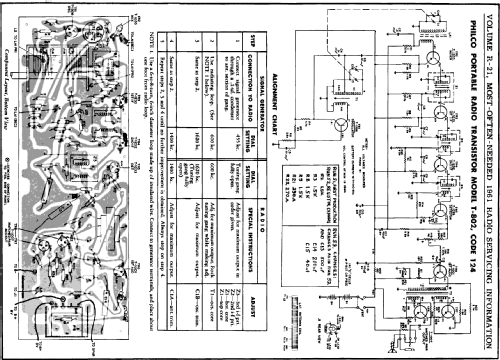

Click on the schematic thumbnail to request the schematic as a free document.

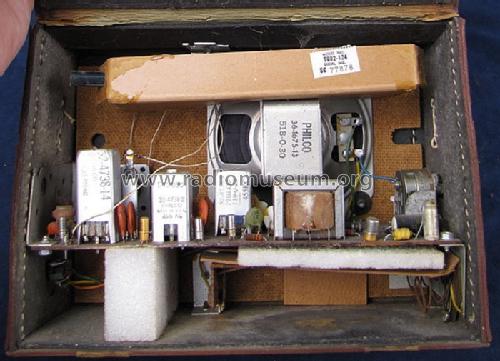

• Number of Transistors
• 8

• Semiconductors
• T-1033 T-1306 T-1233 T-1232 T-1033 T-1001 T-1007 T-1007

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

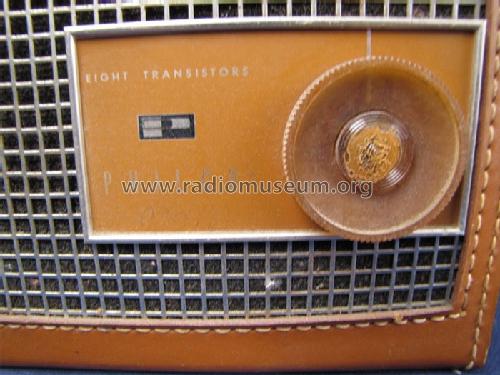

• Model: T-802 Code 124 - Philco, Philadelphia Stg. Batt

• Shape
• Portable set > 8 inch (also usable without mains)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 21, 1961

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
