• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91234

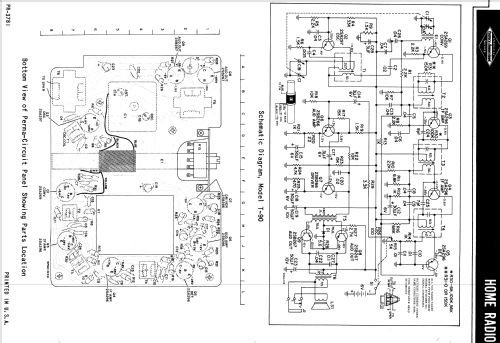

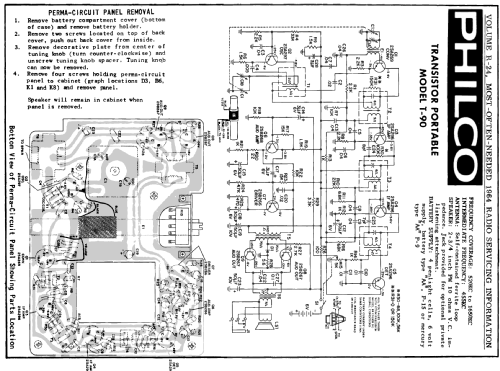

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: T-90 - Philco, Philadelphia Stg. Batt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 94 x 175 x 50 mm / 3.7 x 6.9 x 2 inch

• Net weight (2.2 lb = 1 kg)
• 0.795 kg / 1 lb 12 oz (1.751 lb)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 205)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
