- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91409
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / D: 6 x 1,5 / DC 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

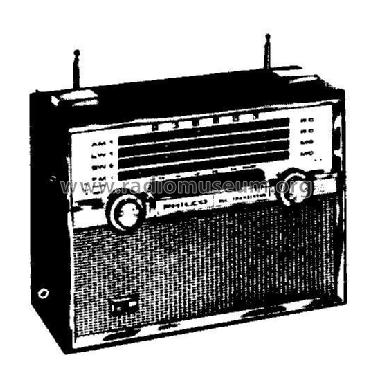

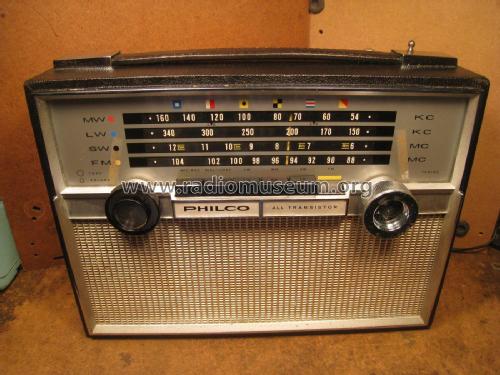

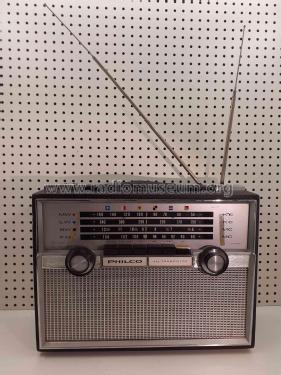

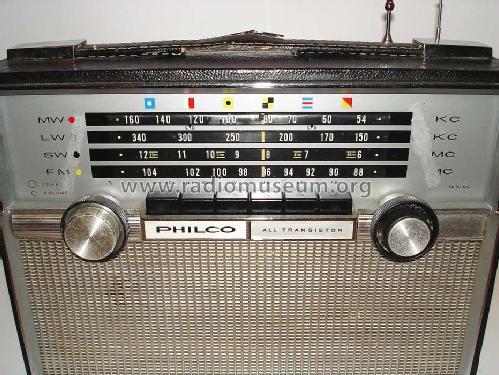

- Model: T-911 - Philco, Philadelphia Stg. Batt
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 312 x 224 x 116 mm / 12.3 x 8.8 x 4.6 inch
- Notes
-
Price includes external AC adaptor.
Made in Germany by Akkord Radio.
Compare with the domestic model Pinguin Royal.The schematic lists the transistors in the FM front-end and AM mixer as OC815 and OC814 which in fact are AF (audio) transistors. This is erroneous, the correct designations are OC615 and OC614.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Price in first year of sale
- 14.88 US$
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 24, 1964
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
