48-225 Transitone

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18861

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 14A7 14B6 50A5 35Z5 7A8

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 48-225 Transitone - Philco, Philadelphia Stg. Batt

• Dimensions (WHD)
• 10.75 x 6.5 x 5.5 inch / 273 x 165 x 140 mm

• Notes

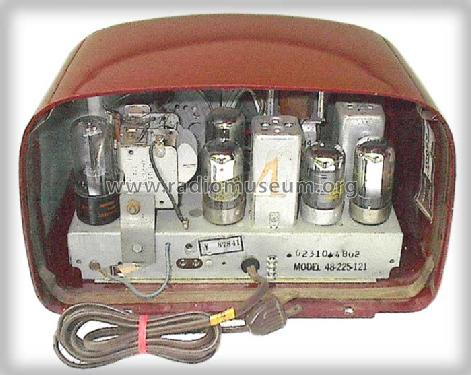

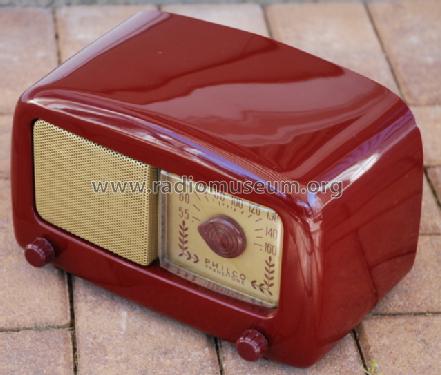

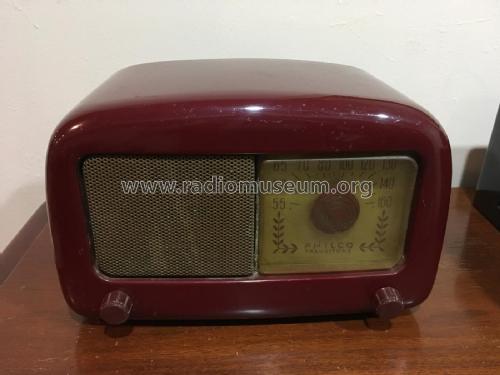

• Philco Tabletop AM Receiver Model Transitone 48-225 Code 121.
  Maroon plastic cabinet with gold lacquer grille.
  2-Color illuminated Dial
  Power Consumption 30 Watts


• Price in first year of sale
• 27.95 USD

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• -- Original prospect or advert (Philco Print Ad)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 37, Date 3/48, Folder 487-15)

• Other Models

• Here you find 4018 models, 2214 with images and 3667 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
