Transitone C570 Code 126

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 235244

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transitone C570 Code 126 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 10 x 6.5 x 6.5 inch / 254 x 165 x 165 mm
  • Notes

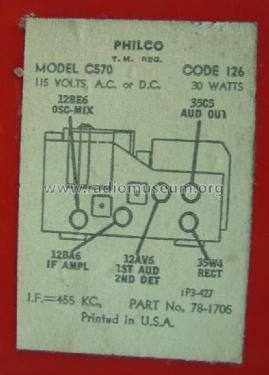

  • Philco Table Top 5 Tube AM Radio Model C570 Code 126.
    Silver tuning dial with the cold war Civil Defense station presets marked on it.
    Power Consumption 30 Watts.

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
