• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 232311

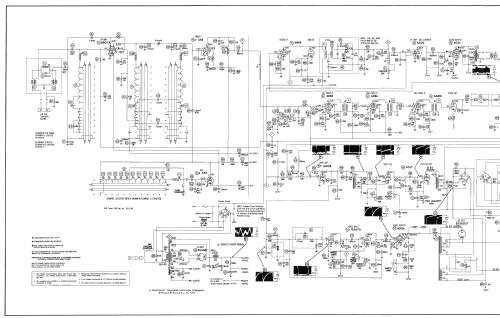

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6AF4 6BQ7A 6X8 6DE6 6DE6 6AM8 6AW8 6BY8 6AV6 6CU5 6SC7 12AU7A 6DQ6 6AX4 1B3GT 5U4GB 21BTP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: UE4602TL Ch= 7L40U - Philco, Philadelphia Stg. Batt

• Shape
• Console, Highboy (legs > 50 %).

• Notes

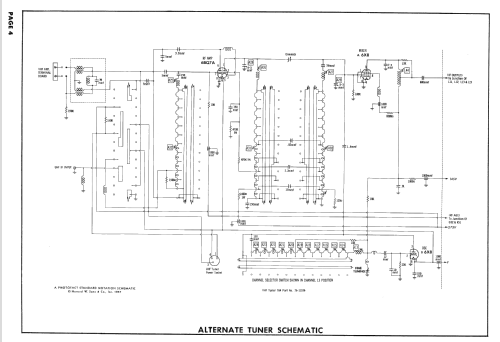

• The Philco UE4602TL is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 7L40U, UHF/VHF tuner T-64 and picture tube 21BTP4.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)

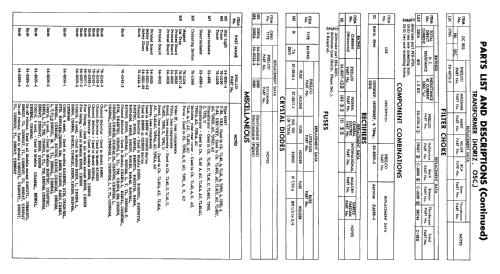

• - - Manufacturers Literature (Philco Service Manual PR-3027, PR-3062)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 362 Folder 7 Dated 6-57)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
