UF3035SA Ch= 8H20U

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 211415

• Picture

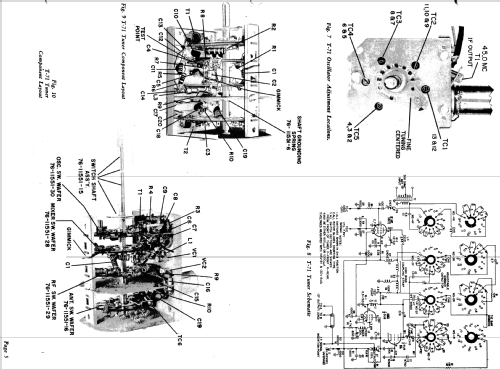

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 4BQ7A 5AT8 2AF4A 12AX4GTA 1B3GT 12DQ6A 5AM8 3BZ6 3BZ6 12C5 6AW8A 5T8 6BY8 7AU7 6CS7 17AVP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: UF3035SA Ch= 8H20U - Philco, Philadelphia Stg. Batt

• Notes
• The Philco UF3035SA is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 8H20U, VHF/UHF tuner T-81 and picture tube 17AVP4A.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
