UF4216 Ch= 8L71U
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183656

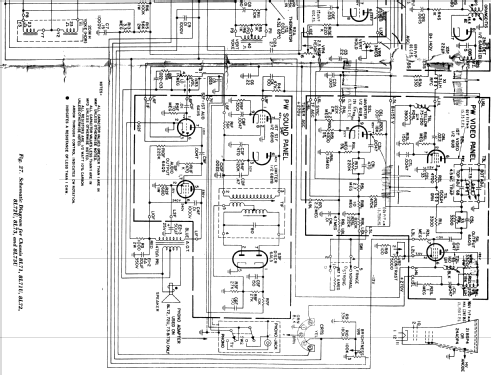

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6X8 6BC8 6AF4A 6AM8 6DE6 6DE6 6CM6 12BR7 12AU7A 12AU7A 6AQ5 6U8 6AQ5 6AV6 6AL5 6BY8 5U4GB 1B3GT 6DQ6GTA 6AX4GT 21BSP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: UF4216 Ch= 8L71U - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Philco UF4216 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 8L71U, tuner T-65A and picture tube 21BSP4.
- Literature/Schematics (1)

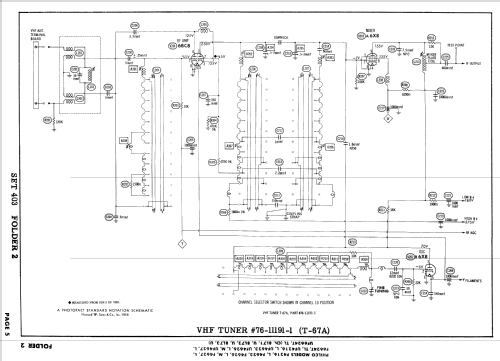

- Photofact Folder, Howard W. SAMS (Date 6-58, Set 403, Folder 2)
- Literature/Schematics (2)

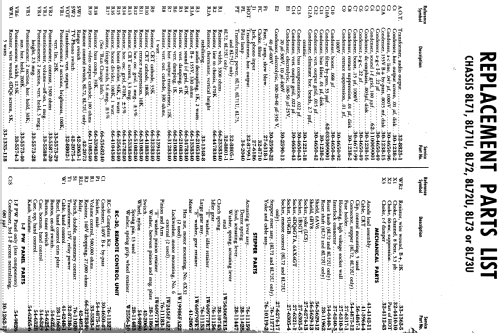

- - - Manufacturers Literature
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 381 Folder 17-S dated 12-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
