UHF Adaptor UT-21 43-6475

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1953 ?
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 236762

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

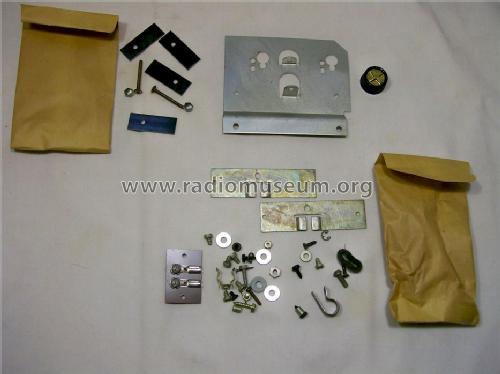

  • Model: UHF Adaptor UT-21 43-6475 - Philco, Philadelphia Stg. Batt
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 7.75 x 9.25 x 21.25 inch / 197 x 235 x 540 mm
  • Notes

  • The Philco Model UT-21 is a UHF Tuner Adapter. Tuning Range Channels 14 thru 83.

    Application:   UHF Tuner-Adapter UT-21, Part No. 43-6475, is designed for Philco televisions which do not have UHF tuning; and TV receivers complying as follows:



    1. PhilcoTelevision Receivers using rf chassis 41, 42, 44, or 71.
    2. PhilcoTelevision Receivers using rf chassis 31, 32, 33, 34, 35, or 3P1, with the use of an Adapter Cable, Part No. 43-6690 (not included).

             Note: The UHF Scale can be installed onPhilco TV receivers whose model number begins with A-T.

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
