- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1962 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 347880
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 1
- Semiconductors
- AR-12
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 13.2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: W-6234 - Philco, Philadelphia Stg. Batt
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)

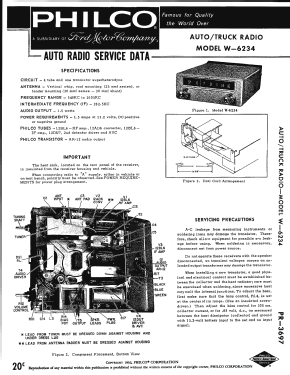

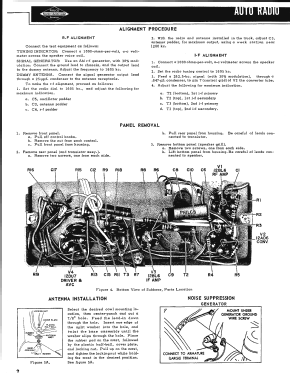

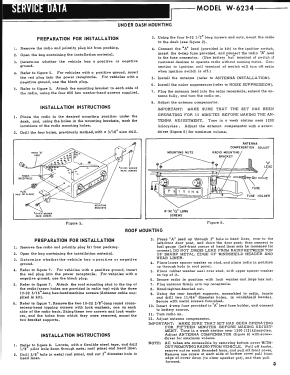

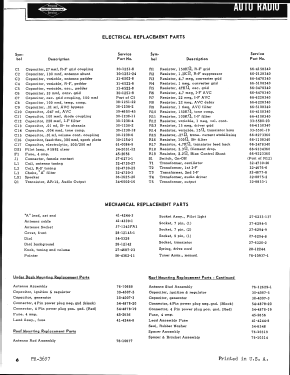

- - - Manufacturers Literature (Philco Auto Radio Service Data, Model W-6234, 1962.)
- Author
- Model page created by Ed Riley. See "Data change" for further contributors.
