• Country
• Italy

• Manufacturer / Brand
• Philco Italiana, Milano

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193893

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 ECC83 EL95 EL95

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 5 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

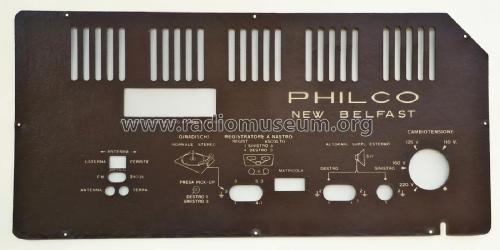

• Model: New Belfast - Philco Italiana, Milano

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 790 x 1100 x 360 mm / 31.1 x 43.3 x 14.2 inch

• Notes
• Radiogrammofono consolette stereofonico ad alta fedeltà con due canali acustici separati e un canale centrale a 5 altoparlanti.

• Mentioned in
• Catalogo ANIE (1960-61)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
